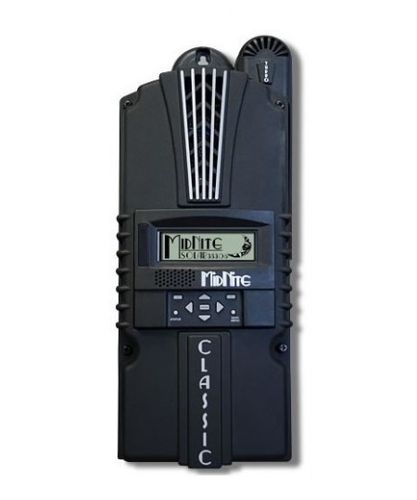

The Midnite Classic RCM 150 / 96A Solar MPPT Controller has advanced monitoring software and 180-day data storage.
The Midnite Classic RCM 150/96A Mppt Solar Regulator is one of the most advanced mppt regulators out there. In addition to charging algorithms for any type of battery, we have very advanced monitoring and configuration software. Monitoring screen of all parameters and software with graphic options and data storage for the last 380 days.
The 150/96A Midnite Classic RCM Mppt Solar Regulator allows connecting 4 panels in series
The Midnite Classic RCM 150/96 A Mppt Solar Regulator comes prepared with the HYPERVOC function that allows the 150 volts maximum input to add the battery voltage, so for example in a 48v system we could have 150v + 48v = 198v input panels. Thanks to this function we can go from the three plates in series of a conventional 150v mppt regulator to 4 panels.
Features of the 150/96A Midnite Classic RCM Mppt Solar Regulator
Maximum Voc: 150VDC
Maximum Current: 96A
HyperVOC: 150V + battery voltage
Charging voltages: 12-48v
Applications: Solar – Hydraulic-Wind (For wind mode you have to buy optional accessories)
Maximum Current at 25ºC:
96A for 12v
94A for 24v
83A for 48v
Two relays, one of them with data input
Use temperature: -40 to 40ºC
Data: 380 days with 12 parameters.
Loads: Bulk, Absorption, Float, Equalization, Errors.
Warranty: 5 years
