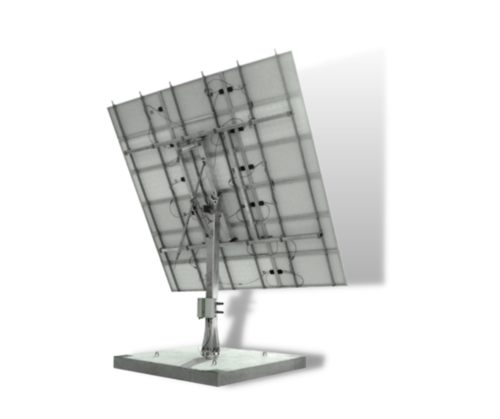

Solar tracker 2 axes w backstr for 15 solar panels, it is suitable for photovoltaic panels, concentrators—CPV, heliostats.
2-axis w backstr solar tracker for 15 solar panels, it is perfect for connecting to the grid on the roof of houses, traffic signals, public lighting, country houses, power plants.
The solar panels are connected in series and the output is directly connected to the inverter or an external charging device.
Wind resistance is max. 144 km/h, 10 min average wind speed 72 km/h. In one year with 2 shaft motor, you can get 7% more energy revenue compared to single shaft motor.
Also, this sun tracker includes the function of anti-shade software, however, concrete blocks with reinforcing steel cage are not part of this sun tracker package. You can purchase it separately.
Technical description of the 2-axis solar tracker w backstr for 15 solar panels
Number of movement axes: 2 axes
Astronomical Tracking Algorithm: Yes, 0.5 degree accuracy (0.1****)
CPV Usage (Concentrated PV Usage): Yes, all types including round parabolic dishes, but mainly served by 15 flat solar panels.
Dimensions: 0.99m × 1.67m
Weight: 23kg each
Solar panel surface: united by 25 m2
Real time clock and date with bck. battery: yes, included
USB or RS485 interface to PC: yes, included
Network communication type: yes, included
Type of application program for supervision and adjustment: yes, included
Configuration via PC: yes, included
Tracking via PC: yes, included
Update via PC: yes, included
Control and driving via PC: yes, included
Options (marked with **** are for additional payment): Heliostat****
Expected lifetime: 800-1000h motor running (DC motor is replaced every 8 years if every day is one cycle), backup battery is replaced every 3–5 years if battery is on, the other 25 years.
Hour angle: 100° (50°E + 50°W).
