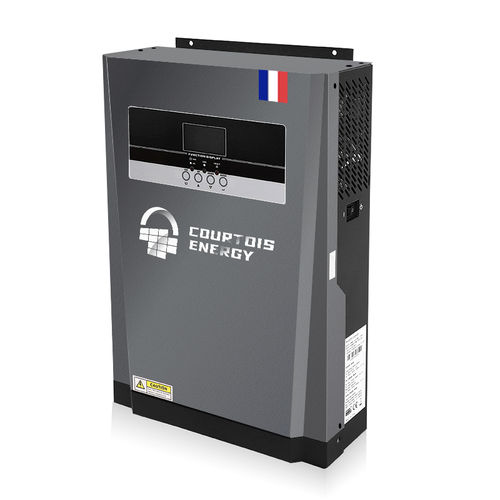

5000W 48Vhybrid charger inverter with MPPT regulator ideal for small isolated solar installations with lead or lithium batteries
The 5000W 48V hybrid charger inverter is equipped with a MPPT solar charge controller to maximize and regulate the direct current power coming down from the solar panels and charging the battery or battery bank. The transformerless design offers reliable power conversion in a compact size and with high efficiency.
The inverter has an aluminum casing, integrated interface system, it is light and practical, which makes it easy to install.
It is the ideal inverter for small photovoltaic systems or individually for small houses, indoors and outdoors.
CHARACTERISTICS OF THE PWM CHARGER INVERTER
Pure sine wave inverter
Integrated MPPT solar charge controller.
Selectable input voltage range and frequency
The charging current is adjustable according to your battery type
AC / solar input priority configurable via LCD settings
Compatible with mains voltage or generator power
Automatic restart while AC power is restored
Protection against overload and short circuit.
Smart battery charger design for optimized battery performance
Cold start function
Parallel operation with up to 9 units available for MKS 5K.
TECHNICAL CHARACTERISTICS
Rated power: 5,000VA / 4,000W
Output voltage: 230V
Frequency range: 50 Hz / 60 Hz (Automatic detection)
Surge power: 10,000VA
Peak efficiency: 93%
Wave Type: Pure Wave
Battery voltage: 48V
Floating charge voltage: 54VDC
Overload protection: 60VDC
Maximum charge current: 60A
Charge current: 60A
Maximum power of solar panels: 3,000 / 4,000W
MPPT operating voltage range: 60VDC-115VDC
Maximum power solar field open voltage: 145VDC
Maximum charge current: 80A
Standby consumption: 2W
Dimensions: 140 x 295 x 540mm
Weight: 13 Kg
Humidity: 5% to 95% relative humidity (non-condensing)
Operating temperature: 0º – 55º
Storage temperature: -15º to 60º
