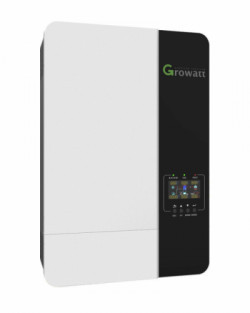

Growatt SPF 5000 ES 48V 100A charger inverter, pure sine wave, with a maximum output power of 5000W.
Characteristics of the Inverter Charger Growatt SPF 5000 ES 48V 100A
This device is an inverter charger and also a regulator, so it is a 3 in 1. Within the same device, it incorporates the following:
Pure wave inverter with, 5000W output power. This part is responsible for transforming the direct current that comes from the battery bank or solar panels so that it is suitable for consumption at 230V in single phase.
100A MPPT maximizer solar charge regulator. The solar charger receives the current from the solar panels and is responsible for adjusting the intensity and output voltage to the conditions in which the battery is at all times. In this way, the battery charge is carried out according to the configuration that we establish to maximize the useful life.
80A battery charger with automatic start and bypass function. Thanks to this functionality of the inverter, we will be able to charge the battery from an external 230V power source and feed the consumption that the inverter has so that the energy does not leave the battery.
Functionalities of the Inverter Charger Growatt SPF 5000 ES 48V 100A
It can provide the necessary energy for a small home or for sporadic use during vacation periods, with up to, 5000W of output power. The Growatt charger inverter incorporates an MPPT-type solar charge regulator with a maximum charge current of 100A at 48V, which allows up to, 6000W of photovoltaic power to be used.
The Growatt inverter is a charger because it incorporates a 80A and 48V battery charger from an external single-phase 230V source, such as a generator or the electrical network, and thus performs backup functions for times when the energy photovoltaic is insufficient.
Properties of the Inverter Charger Growatt SPF 5000 ES 48V 100A
– Wave type: pure sinusoidal.
– Output power: 5000W, with a peak of 10000VA.
– Compatible battery type: 48V Lead or Lithium.
– Ability to work in parallel: Yes, up to 6 units.
– Maximum photovoltaic power: 6000W.
– MPPT working range: 120 – 430VDC.
– Maximum intensity of the Photovoltaic Charger: 100A.
– Network working frequency: 50 / 60Hz.
– Dimensions: 330 x 485 x 135mm.
– Weight: 12Kg.
The Growatt SPF 5000 ES 48V 100A Charger Inverter has an LCD screen in its central front part with 4 buttons and 3 status LEDs that will allow us to easily view the status of our installation, a quick configuration and the detection of any incidence or problem in the photovoltaic system. This all-in-one device incorporates an inverter, a charger and a charge regulator for greater simplicity of installation, start-up and management.
Operation of the Inverter Charger Growatt SPF 5000 ES 48V 100A
Through its simple configuration, with the Growatt SPF 5000 ES 48V 100A Inverter Charger we can use lead batteries of any technology, such as OpzS, AGM or GEL batteries, but we can also use 48V lithium batteries and have a system with the latest technology.
The type of accumulators that we connect to it can be specified through its simple configuration, and we can also optimally manage the energy from the batteries, solar, generator or emergency electrical network to achieve an isolated system that works in the most appropriate way for our needs consumption and in the most efficient way.
