The Solar Panel Kit 300W 12V 1000Whdia with AGM battery, feeds small consumers such as televisions, lamps, laptops, etc.
Characteristics of the Solar Panel Kit 300W 12V 1000Whdia system
The photovoltaic system provided in the attached file can generate 0.60 kWh per day in winter (3 hours of sunshine) and 1.40 kWh in summer (7 hours of sunshine).
The characteristics of the proposed system are the following:
Installed solar generation: 200 W
Maximum output power to housing: 375VA
Daily production in winter: 0.60 kWh
Summer: daily production: 1.40 kWh
Annual average daily production: 1.00 kWh

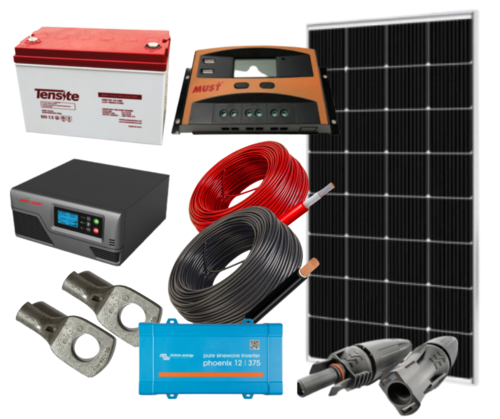

Components of the Solar Panel Kit 300W 12V 1000Whdia
1 x Solar Panel MUST 200W 12V Monocrystalline; suitable for caravans and 12V installations. It consists of 32 monocrystalline cells, weighs 10.3 kg and has dimensions of 1290 × 760 × 30 mm. The efficiency of the module is 20.4%, making it a very good option for small isolated houses with 3 or 4 panels and a 12V battery installed.
1 x AGM 12V 100Ah Tensite Battery: block battery in a compact format that does not emit gases and does not require maintenance. This is a great option if you plan to install the battery in a ventilated area. It is recommended to install it in a natural position. Never connect in parallel. It’s a great battery with a 2-year manufacturer’s warranty.
1 x 12V / 24V 20A PWM Must Solar Regulator: the 20A charge regulator works with a 12Vdc or 24Vdc battery and reports all the battery charging information (general operating status, battery voltage, current produced and temperature) from the panel includes an LCD screen to display In addition, this 10A solar charge controller from the manufacturer Must Solar can be easily configured to accurately charge batteries regardless of technology, ensuring perfect results and long battery life. It features a 12Vdc or 24Vdc output for DC-powered charging, 2 USB ports for charging mobile devices, and offers a 2-year manufacturer’s warranty. The charge controller has protection against PV array short circuit, PV reverse connection, battery reverse connection, overload and output short circuit. Available from 10A to 60A in 12V DC and 24V DC models.
1 x Victron Phoenix 12V 375VA Inverter – This is a high performance compact inverter with a 2-year warranty. The strength of the Victron 375VA Pure Wave Inverter is its starting ability and stability of power output. It can handle spikes that various electronic devices may have. Lighting, caravan refrigerators (unless the starting power of the refrigerator exceeds 300W), or other devices that do not exceed approximately 300W. of maximum performance. Equipped with an LED light that constantly shows the status of the inverter. The Victron brand is a leader in the design and manufacture of sine wave inverters. A very reliable and at the same time compact inverter. Wiring is included to connect to the battery and the power outlet is a European Schuko plug.
1 x Roll Unifilar Cable 6mm2 H1Z2Z2-K 10m red: special for electrical installations. Halogen-free flexible power cables for the most demanding industrial requirements.
1 x Roll Unifilar Cable 6mm2 H1Z2Z2-K 10m black: special for electrical installations. Halogen-free flexible power cables for the most demanding industrial requirements.
2 x 6mm Cable Eye Terminal – 8mm Eye: used to crimp 6mm gauge cables and connect with 8mm diameter screws.
1 x WEIDMULLER PVStick Connectors – Most recommended if you don’t have crimping tools that can connect normal MC4 connectors. They are compatible with all connector models that come standard with solar panels and require no tools to connect to the cable.
