Single axis solar tracker w backstr for 2 panels 0122, it is suitable for photovoltaic panels.

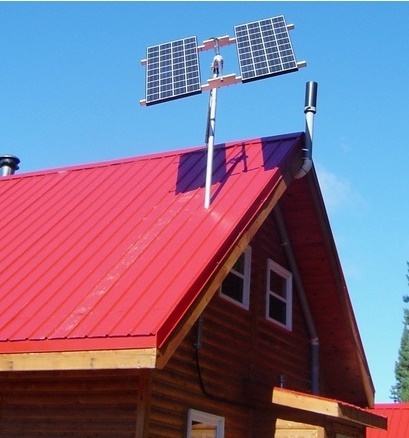

The 1-axis w backstr solar tracker for 2 panels 0122, is perfect for connecting to the grid on the roof of houses, traffic signals, public lighting, country houses, power plants.
The solar panels are connected in series and the output is directly connected to the inverter or an external charging device.
Wind resistance is max. 144 km/h, the average of 10 minutes is 50 km/h. In one year with a single shaft motor 25% more energy revenue can be obtained compared to a fixed system.
Also, this sun tracker includes the function of anti-shade software, however, the ground screw and main pole are not part of this sun tracker package. You can purchase it separately.
Description of the Solar tracker 1 axis w backstr for 2 panels 0122
Movement axis number: 1 axis
Astronomical Tracking Algorithm: Yes, 0.5 degree accuracy (0.1 ****)
CPV Usage (Concentrated PV Usage): Yes, but served primarily by 2 flat solar panels.
Dimensions: 0.99m × 1.65m
Weight; 20kg each
Solar panel surface: united by 3.3 m2
Real time clock and date with bck. battery: yes
USB or RS485 interface to PC: Yes
Network communication type: RS485
Type of application program for supervision and adjustment: Solar tracking system, monitor through Helios analysis
Configuration via PC: Yes
Tracking via PC: Yes
Update via PC: Yes
Control and driving via PC: Yes
Expected lifetime: 800-1000h motor running (DC motor is replaced every 8 years if every day is one cycle), backup battery is replaced every 3–5 years if battery is on, the other 25 years
Hour angle: 100° (50°E + 50°W).
